特点

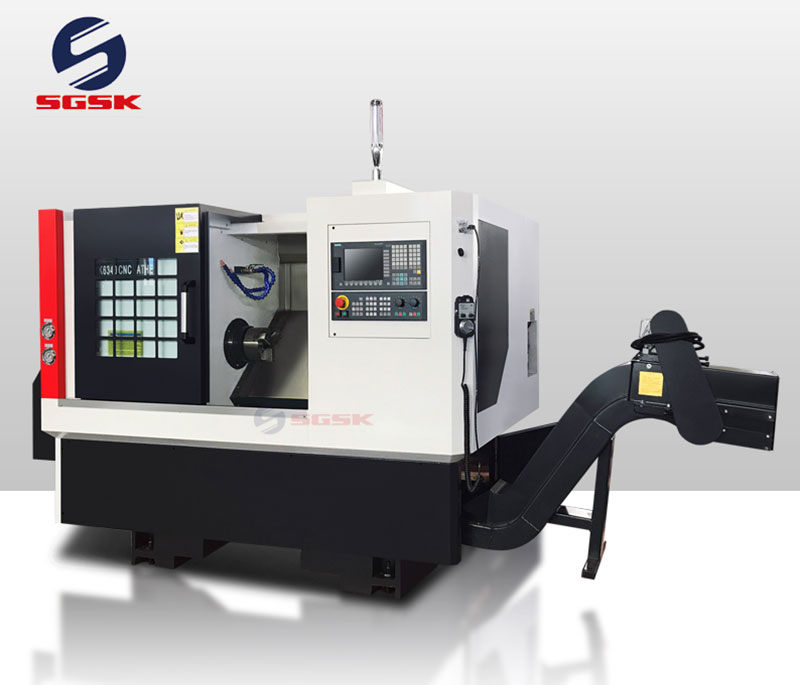

● 45 degrees slant bed CNC lathe
● Higher accuracy Taiwan linear
● Chip conveying capacity is large and convenient, customer could choose chip conveying in the front or in the back
● Screw pre-stretching structure
● Gang type tool post
应用案例
Fanuc Oi Mate-TD control system
Servo motor 3.7 kw
4 station gang type tool post
8" non thru-hole type hydraulic chuck
Optional Accessories
Main Motor: Servo5.5/7.5KW, Inverter 7.5KW
Turret: 4 station electric turret ,6 station electric turret
Chuck: 6″Non-through hole hydraulic chuck ,8″Non-through hole hydraulic chuck (Taiwan)
8″through hole hydraulic chuck(Taiwan)
Chip conveyor
Steady Rest
Other optional item: Driving tool turret, automatic
feeding device and manipulator.
产品主要技术参数
| Specification | Unit | TCK6340 |
| Max. swing over bed | mm | 400 |
| Max. swing over cross slide | mm | 140 |
| Max. processing length | mm | 300 |
| X/Z axis travel | mm | 380/350 |
| Spindle unit | mm | 170 |
| Spindle nose | A2-5 | |
| Spindle bore | mm | 56 |
| Spindle drawing pipe diameter | mm | 45 |
| Spindle speed | rpm | 3500 |
| Chuck size | inch | 6/8 |
| Spindle motor | kw | 5.5 |
| X/Z repeatability | mm | ±0.003 |
| X/Z axis feed motor torque | N.m | 6/6 |
| X/Z rapid traverse | m/min | 18/18 |
| Tool post type | Gang type tool post | |
| Cutting tool shape size | mm | 20*20 |
| Guide form | 45° inclined guide rail | |
| Total power capacity | kva | 9/11 |
| Machine dimension (L*W*H) | mm | 2300*1500*1750 |
| N.W. | KG | 2500 |
