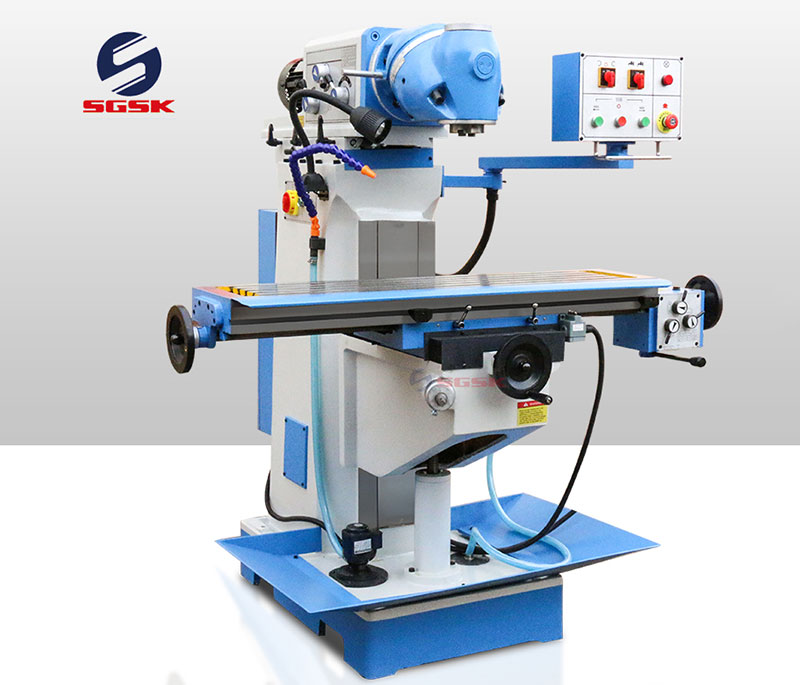

产品主要技术参数
| Specifications | Units | X6336 |
| Table size | mm | 1500×360 |
| Table travel | mm | 1000/320/450 |
| T slot(number-width-pitch) | mm | 3-18-80 |
| Spindle taper | ISO40 7:24 (V) ISO50 7:24 (H) | |
| Spindle speed range | rpm | (V) 50HZ:65-4500 60HZ:80-5440 (16 steps)(H) 60-1800(12steps) |
| Optional:（variable）65-4000 | ||
| Spindle travel | mm | 127 |
| Spindle feed range | mm | 0.04,0.08,0.15 (3 steps) |
| Distance between spindle nose and table surface | mm | 140-590 |
| Distance between spindle axis and table surface | mm | 0-450 |
| Main motor power | kw | 3.7(V)4(H) |
| Head rotation (left - right ) | ° | ±90° |
| Head rotation (front - rear) | ° | ±45° |
| Weight | kg | 2400 |
| Overall dimension | mm | 2600×2200×2550 |
