产品型号:

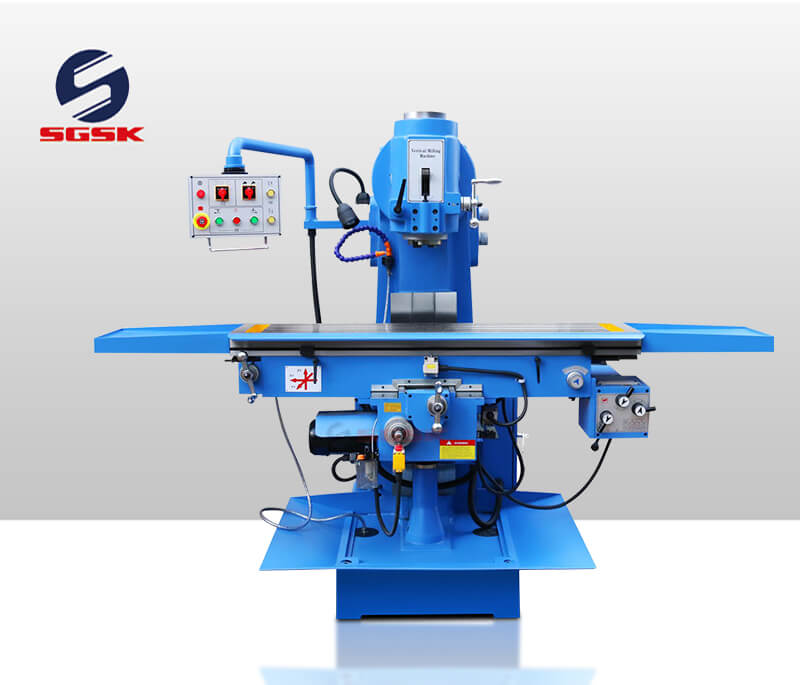

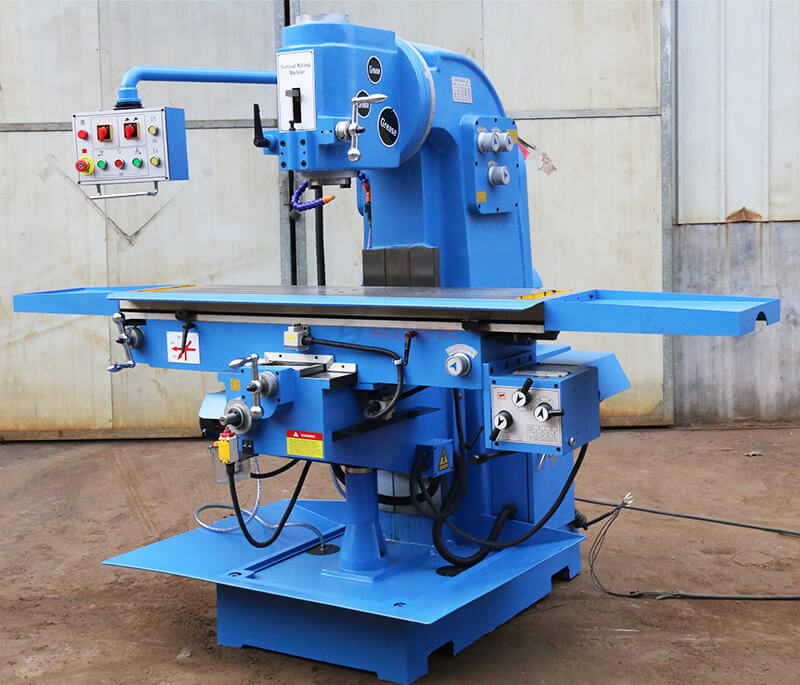

XW5032立式铣床

产品主要技术参数

主要技术参数

Specifications

Units

XW(Q)5032

工作台尺寸

Table size

mm

1500x320

工作台行程

Table travel

mm

800/300/320

T型槽(数量-宽度-

T slot(number-width-pitch)

mm

3-16-70

主轴锥度

Spindle taper


ISO50 7:24

主轴转速范围

Spindle speed range

rpm

40-1300(12Steps)

主轴端面至工作台距离

Distance between spindle nose and table surface

mm

50-450

主轴中心至立柱表面距离

Distance between spindle axis to column surface

mm

320

主电机功率

Main motor power

kW

4

重量

Weight

kg

2200

外形尺寸

Overall dimension

mm

2200x1820x2100
