产品型号:

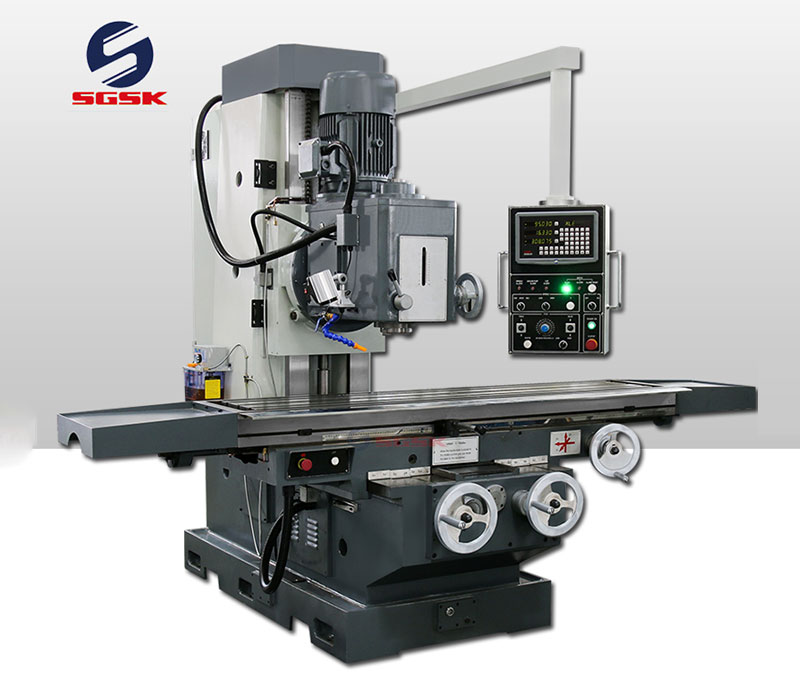

XA7150 Bed-type Milling Machine

特点

● Using MEEHANITE cast iron,

● Using rectangular guide machine is Rigid good,

● Work table and guide rail through the ultra audio spark quenching.

● Milling head can be rotated 30 degrees,

● Hand piece  gear transmission, 12 speed change, suitable for high rigidity of the strong cutting.

应用案例

This machine is a kind of general metal cutting machine tool.

Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.

产品主要技术参数

SpecificationsUnitsXA7150
Table sizemm2000x400
Table stroke(X.Y)mm1500x500
Vertical travel of headstockmm100-650
T-type slot numbers / width /spacemm3-18-100
Max. load working tableKG2000
Milling head rotary motion
+/-30°
Feed speedmm/min20-2000
Rapid feed speed (X/Y)mm/min3100
Spindle speed rangerpm66-1440
Spindle speed stepsteps12
Spindle taper
ISO50
Distance from spindle axis to column guide waymm600
Spindle  motor powerKW7.5
Overall dimensionsmm3000x2285x2340
Machine  weightKG4500
