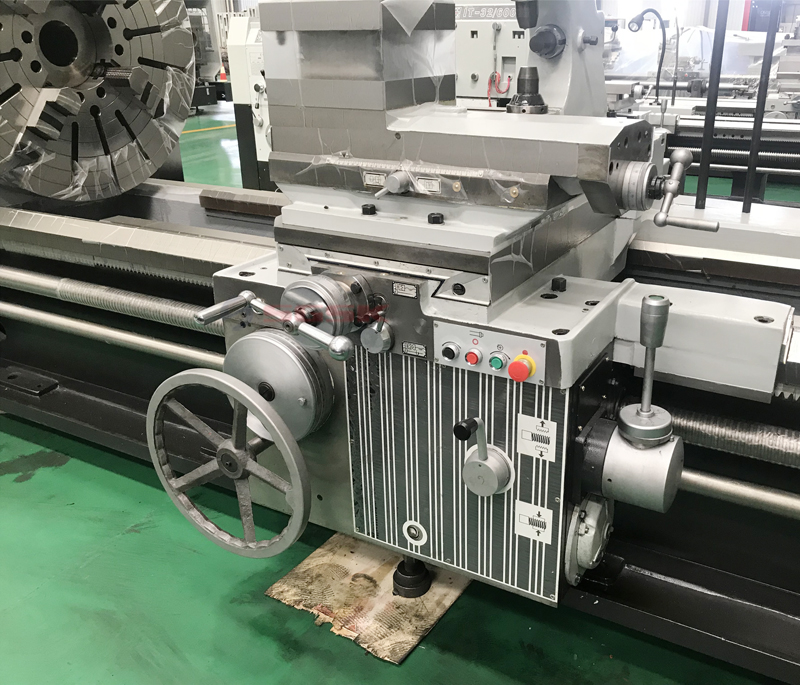

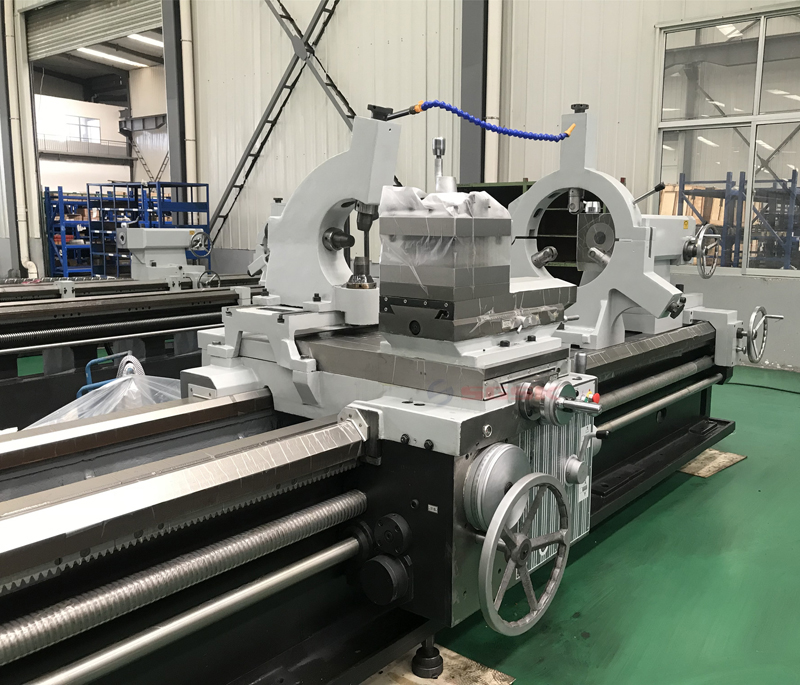

CW61100L重型车床

主要技术参数

SPECIFICATIONS

Units

CW61100L

床身上最大回转直径

Swing over bed

mm

1000

横滑板上最大回转直径

Swing over cross slide

mm

610

最大工件长度

Distance between centers

mm

1500/2000/3000/4000/5000/6000

床身导轨宽度

Guideway width

mm

755

床身承重范围

Max. load capacity

T

6

主轴孔径范围

Spindle bore

mm

130

主轴孔径锥度

Spindle bore taper

-

Metric φ140/MT6

主轴鼻端型号

Spindle nose type

-

A2-15

主轴转速级数

Spindle speed steps

-

FWD. 21 steps

主轴转速范围

Spindle speed range

rpm

3.15-315

卡盘规格

Chuck

mm

φ1000手动四爪卡盘4-jaw manual

刀架类型

Turret/tool post

-

手动4工位刀架Manual turret 4 position

刀具尺寸

Tool shank size

mm

45 x 45

X轴行程

X axis travel

mm

520

Z轴行程

Z axis travel

mm

1350/1850/2850/3850/4850/5850

X轴进给量级数/范围

X axis feed steps /range

mm/r

56/0.05-6

Z轴进给量级数/范围

Z axis feed steps /range

mm/r

56/0.1-12

X轴快速进给速度

X axis rapid traverse

mm/min

1870

Z轴快速进给速度

Z axis rapid traverse

mm/min

3740

公制螺纹种类/范围

Metric thread kinds /range

mm

44/1-120

英制螺纹种类/范围

Inch thread kinds /range

T.P.I

31/28-3/8

模数螺纹种类/范围

Module thread kinds /range

mm

45/0.5-60

径节螺纹种类/范围

DP thread kinds /range

D.P.

30/56-1

尾座套筒直径

Tailstock quill diameter

mm

φ160

尾座套筒锥度

Tailstock quill taper

-

MT6

尾座套筒行程

Tailstock quill travel

mm

300

主轴电机

Main spindle motor

kW

22

快速进给电机

Rapid traverse motor

kW

1.5

冷却泵电机

Coolant pump motor

kW

0.125

机器净重

Net weight

Weight for 1500

kg

9600

Weight for 2000

kg

10100

Weight for 3000

kg

10700

Weight for 4000

kg

11700

Weight for 5000

kg

12700

Weight for 6000

kg

13700

外形尺寸

Overall dimension

Dimension for 1500

mm

4600x2000x1800

Dimension for 2000

mm

5100x2000x1800

Dimension for 3000

mm

6100x2000x1800

Dimension for 4000

mm

7100x2000x1800

Dimension for 5000

mm

8100x2000x1800

Dimension for 6000

mm

9100x2000x1800
